Guangdong Hongming Intelligent Joint Stock Co.,Ltd

位置:首頁 > Products > Rigid box machines
HM-DP4030S Automatic dual-channel Rigid box making machine
HM-DP4030S Automatic dual-channel Rigid box making machine HM-DP4030S Automatic dual-channel Rigid box making machine
  • Commodity name:

    HM-DP4030S Automatic dual-channel Rigid box making machine
  • Shelf time:

    2024-07-25 10:10:09
  • Browse times:

    67次
  • HM-DP4030S Automatic dual-channel Rigid box making machine product introductionHM-DP4030S is a fully automatic dual-channel Rigid box making machine. It is suitable for the simultaneousproduction of T
  • Details of the product

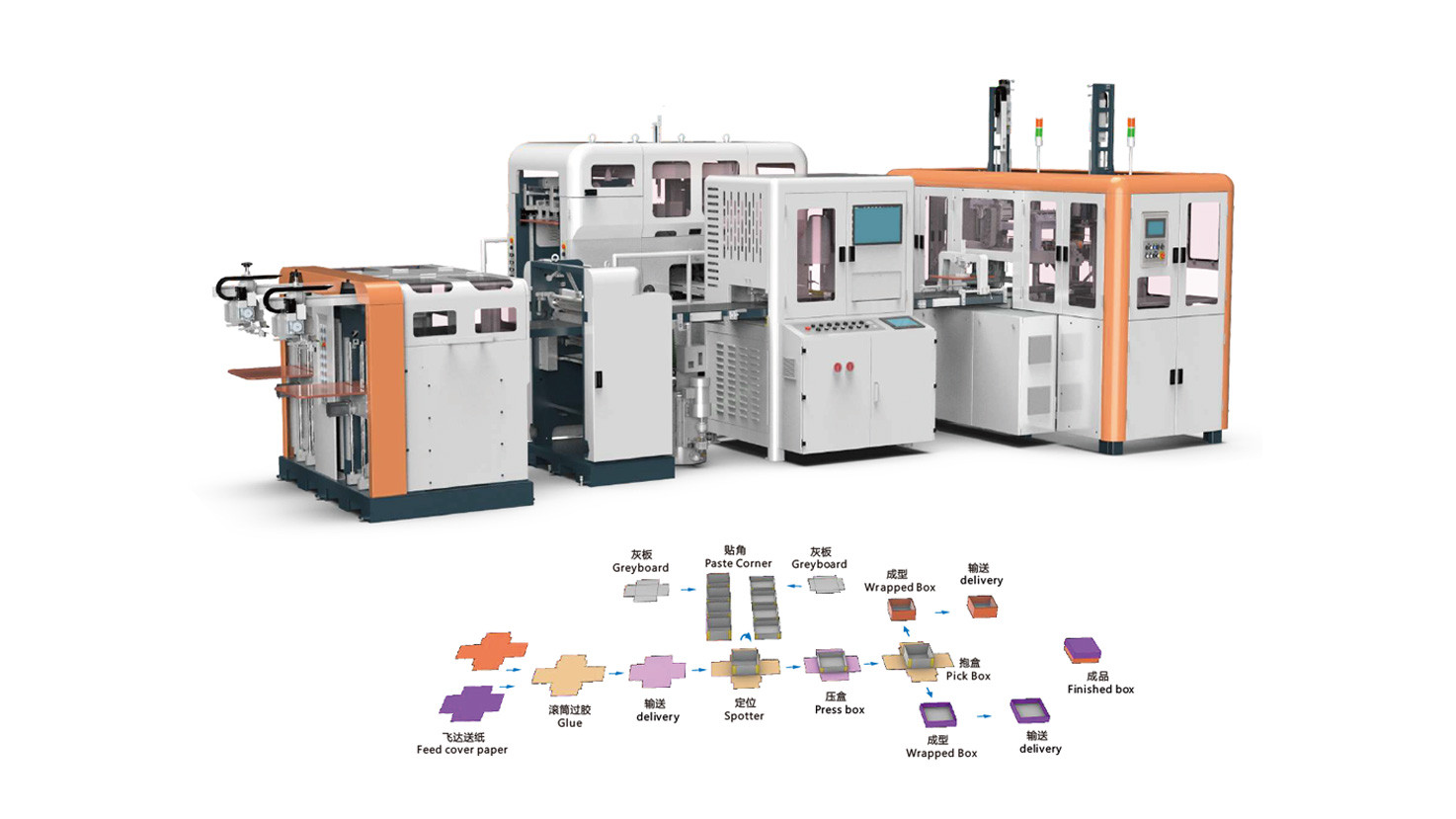

HM-DP4030S Automatic dual-channel Rigid box making machine product introduction

HM-DP4030S is a fully automatic dual-channel Rigid box making machine. It is suitable for the simultaneous
production of Top boxes and bottom boxes of various box types, such as mobile phone boxes, jewelry boxes, cosmetic
boxes, watch boxes, etc. The range of making boxes is larger, which can better meet the needs of the modern
packaging market. The appearance of the whole machine has been newly designed, which is safer and more beautiful.
This machine adopts servo control system and image positioning system to realize automatic completion of paper
feeding, gluing, gray board feeding, four corner pasting, positioning, box holding, edge wrapping, ear folding and
folding forming.
Servo drives of well-known brands are used in the feeder, gluing and conveyor belts, which can be infinitely
variable, high-precision, easy to adjust, and save time; the positioning part uses image positioning systems and robots
to grab parts to improve positioning accuracy and efficiency, and the error range can reach ±0.05mm, and the
positioning and debugging speed is faster; the forming machine adopts THK linear guide rail and virtual electronic cam
drive, which is more stable and wear-resistant, and the movement is smoother, and the size range of folding depth and
folding ear length is also larger.

HM-DP4030S Automatic dual-channel Rigid box making machine unit features and standard equipment

1. Suitable for all kinds of rigid box automatic production line;
2. Double-station molding can complete the molding of the top box and bottom box at the same time;
3. Parametric intelligent adjustment;
4. The long side and short side are layered and formed;
5. The cam box can participate in motion control as a whole; (Details please check the note)
6. Double-station feeding facial paper and gray cardboard function;
7. The box-out direction is parallel to the main conveyor belt;
8. 24-hour glue timing heating function;
9. The molding machine has built-in 300 product formulas;
10. The four-corner heating is controlled by a separate man-machine interface; (Details please check the
note)
11. Automatically change the size of the mold (a set of top box and bottom box);
12. Dual-channel for box exit
13. Multifunctional Robot Vision Image Positioning System (positioning error ±0.05mm); (Details please
check the note)
14. The positioning method of multi-functional high-speed linear motor and visual image processing
system can quickly, efficiently and accurately process the positioning of the top box and bottom
box;(Details please check the note)
15. Rigid box automatic lifting and extraction device; (Details please check the note)
16. Glue viscosity automatic control system (optional); (Details please check the note)
17. Setting of all computer function parameters;
18. Auto error stop and display;
19. Bottom mould use Piston type; (Details please check the note)
20. Main Slider and pull mold section synchronized; (Details please check the note)

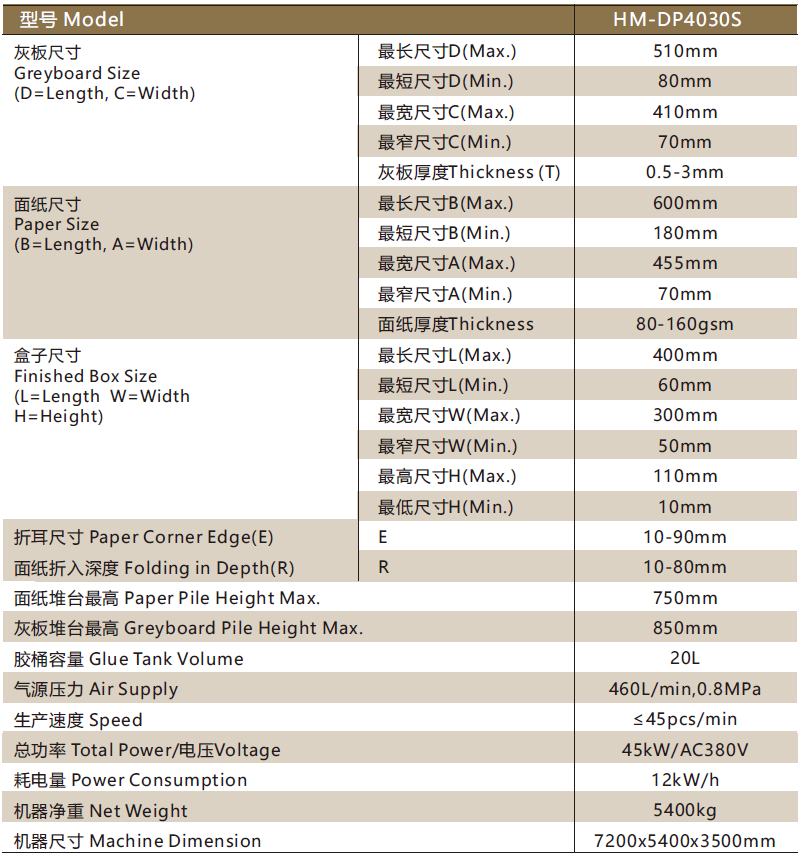

The main technical parameters of HM-DP4030S Automatic dual-channel Rigid box making machine
