HM-600N Automatic Gluing and Spotter Machine Functional specifications
The HM-600N automatic gluing and spotter machine is
the latest model developed by our company. It is suitable for
the positioning process production of various box positioning
machines. It can produce top and bottom box at the same
time, realizes double-channel production and doubles the work
efficiency.
This machine adopts PLC and touch screen man-machine
control system and camera tracing system to realize automatic

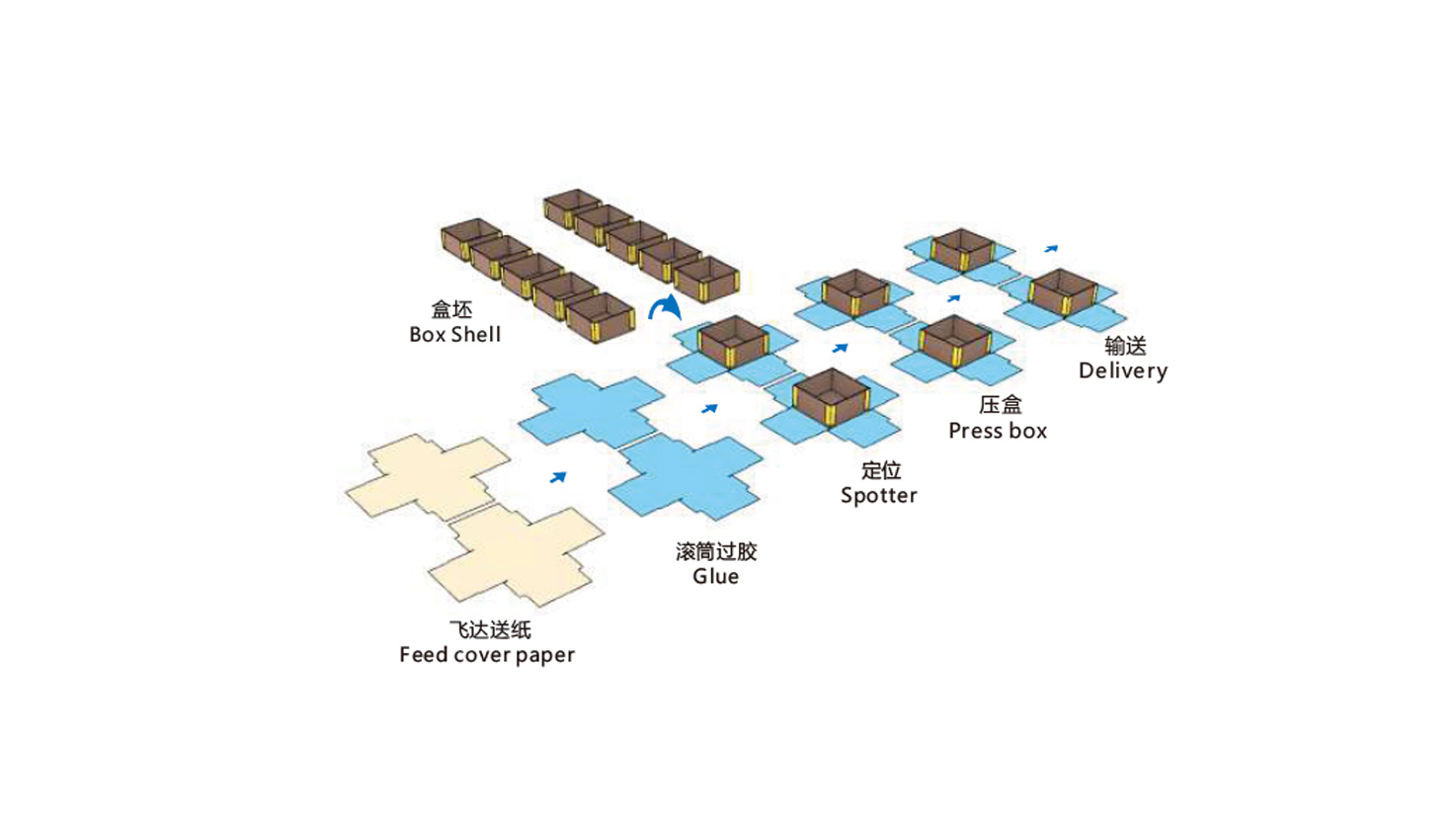

completion of paper feeding, gluing and positioning. In feeder,
the glue and conveyor belts are driven by servo, which can be
infinitely variable, high precision, easy to adjust, and save time.
The positioning part adopts camera tracing system and robot
grasping parts to improve positioning accuracy and efficiency,
the error range is ±0.05mm, and the speed is faster。
HM-600N Automatic Gluing and Spotter Machine unit features and standard equipment
1. Suit to all kinds of paper and box shells positioning process;
2. Suit to all kinds of paper and cardboard positioning process （optional);
3. Parameter adopts computer digital setting;
4. Auto error stop and display;
5. Independent double feederAutomatic feed paper;
6. 24-hour glue timing heating function;
7. Servo system for controlling the whole machine;
8. Spotter by camera tracing system and SCARA (Selective Compliance
Assembly Robot Arm)；(Details please check the note)
9. Automatic control system of glue viscosity (optional); (Details please check
the note)

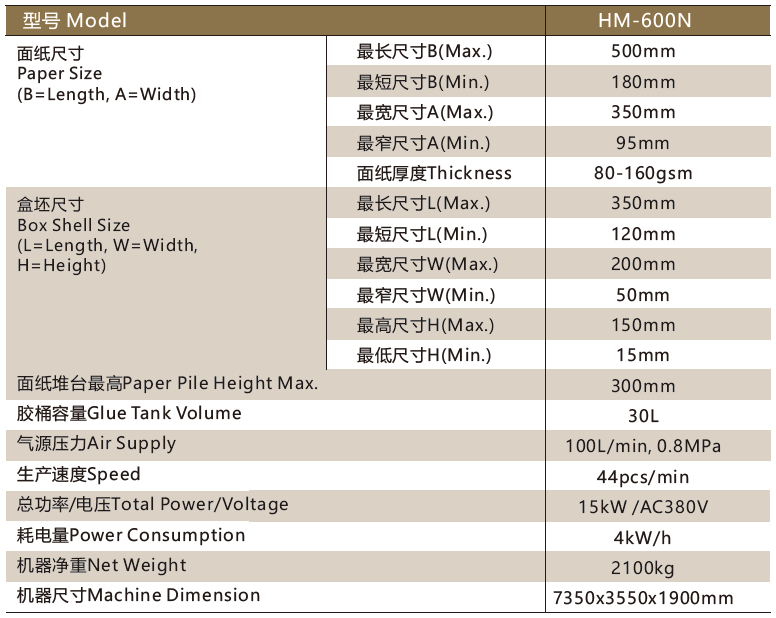

The main technical parameters of HM-600N Automatic Gluing and Spotter Machine
Note：
